Regulators, Mount Up!
The all-mountain workhorse is here to deliver fun on every trail.
We are proud to introduce our all-new eMTB platform, the Regulator! The Regulator ir our all-mountain workhorse designed to provide a fun, nimble and responsive ride. No trail is too tame or too gnarly for the dedicated mixed wheel platform providing 150/160mm travel and geometry that promotes agility and playfulness. The Regulator will be the choice for riders looking for a chassis that excels everywhere with the added assistance of a Bosch drive unit. The Regulator will be available with the Bosch CX drive unit for those looking for higher power and longer range, or the Bosch SX drive unit for those who desire a lighter weight eMTB experience more similar to a regular mountain bike. Both bikes share similar form language, with just small differences between them, read on below to learn more!
Regulator CX
The Bosch Performance Line CX powered Regulator packs 85 Nm of torque with 600 W of peak power from the 600 Wh battery and optional 250 Wh range extender. The main battery is enclosed in a slim downtube and provides hours of fun, while still allowing users to add the range extender if even longer rides are desired. This combination provides the best range to weight ratio for those who value lighter ride characteristics, with the option to ride all day with rhe range extender. Giving you the best of both worlds with one of the most reliable, powerful and intuitive motor systems available on the market.
Features
- Sizes SM-XL.
- Carbon frame, mixed wheel only.
- Size specific CS lengths (442 mm SM/MD, 448 mm LG/XL).
- 160 mm fork travel, 150 mm rear travel (160 mm compatible with 65 mm stroke shock).
- Bosch wireless 2 button Mini-Remote.
- Top tube mounted system controller LED display.
- New head tube cable routing ports: compatible with 0, 1 or 2 cables per side; ideal routing for either right/rear or left/rear brake assemblies.
- New chainstay protector design: includes separate cable routing grommet or closed plug for wireless RD.
- custom charge port cover with integrated range extender cable management.
- Bosch Performance Line CX drive unit with 85 Nm of torque.
- Powertube 600 Wh battery: non-removable slide-in assembly for clean looks, minimum DT cross section, durability/robustness, lightest weight and least amount of noise..
- Geo-adjust chip at lowe shock mount.
- Ideal balance of weight, handling and power with flexible battery capacity: 600 Wh battery, 250 Wh range extender compatible with MD-XL sizes (sold separately).

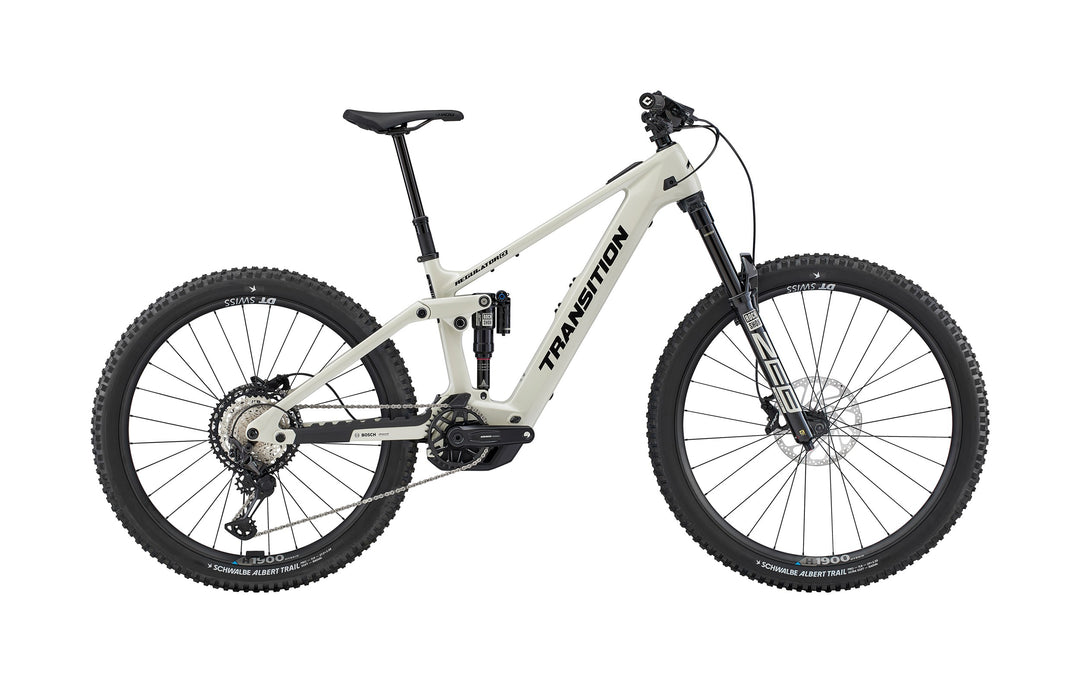

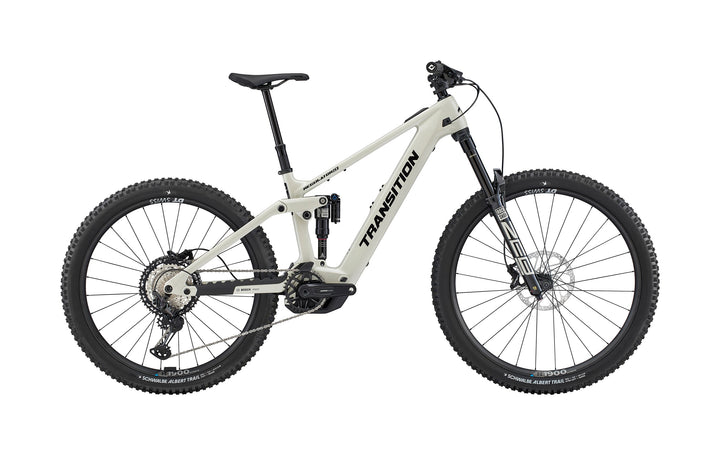

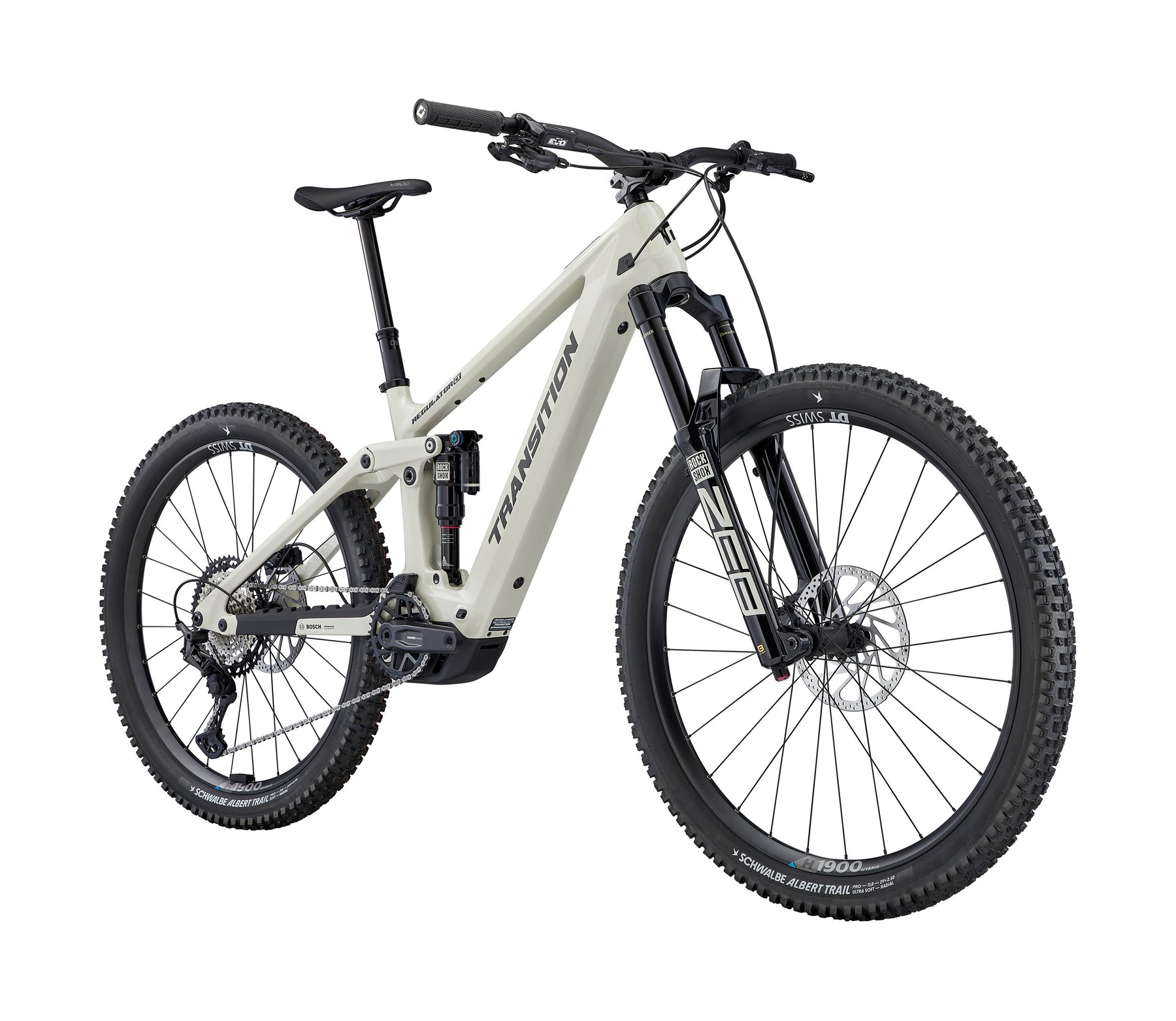

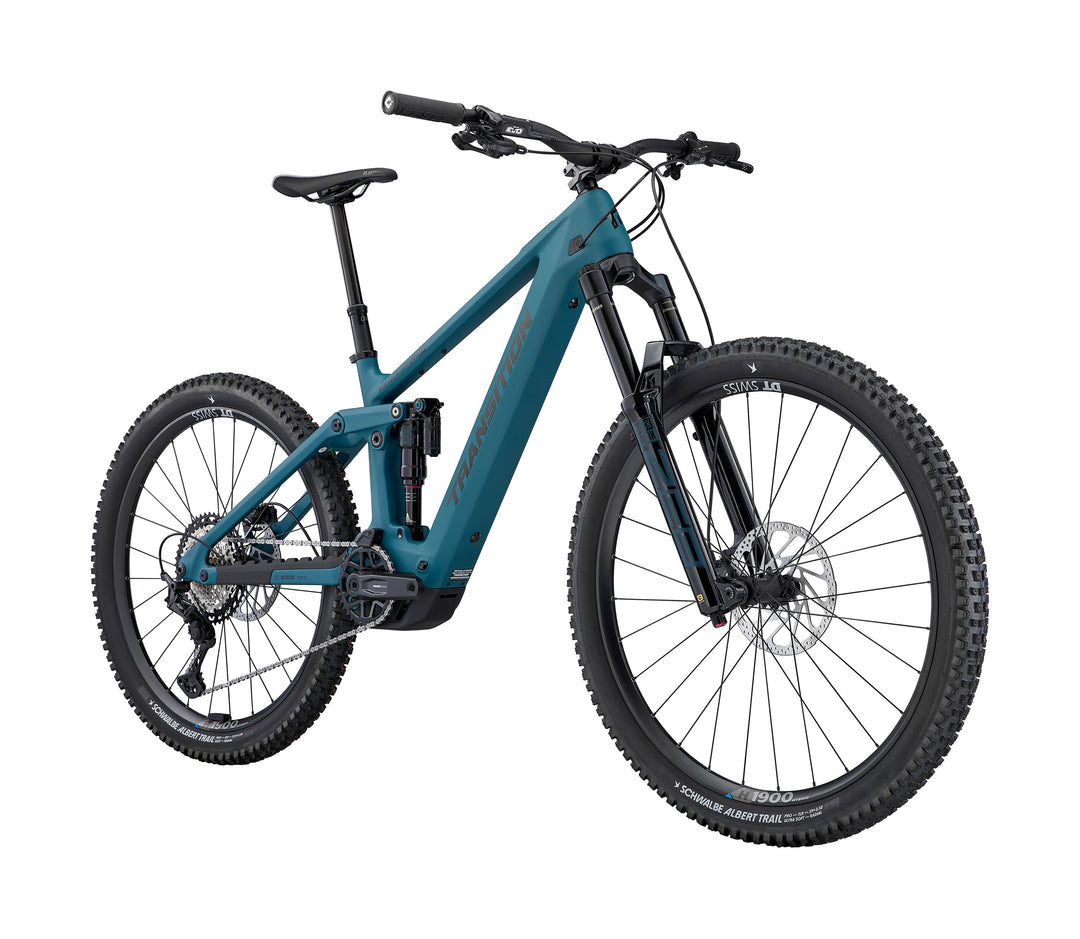

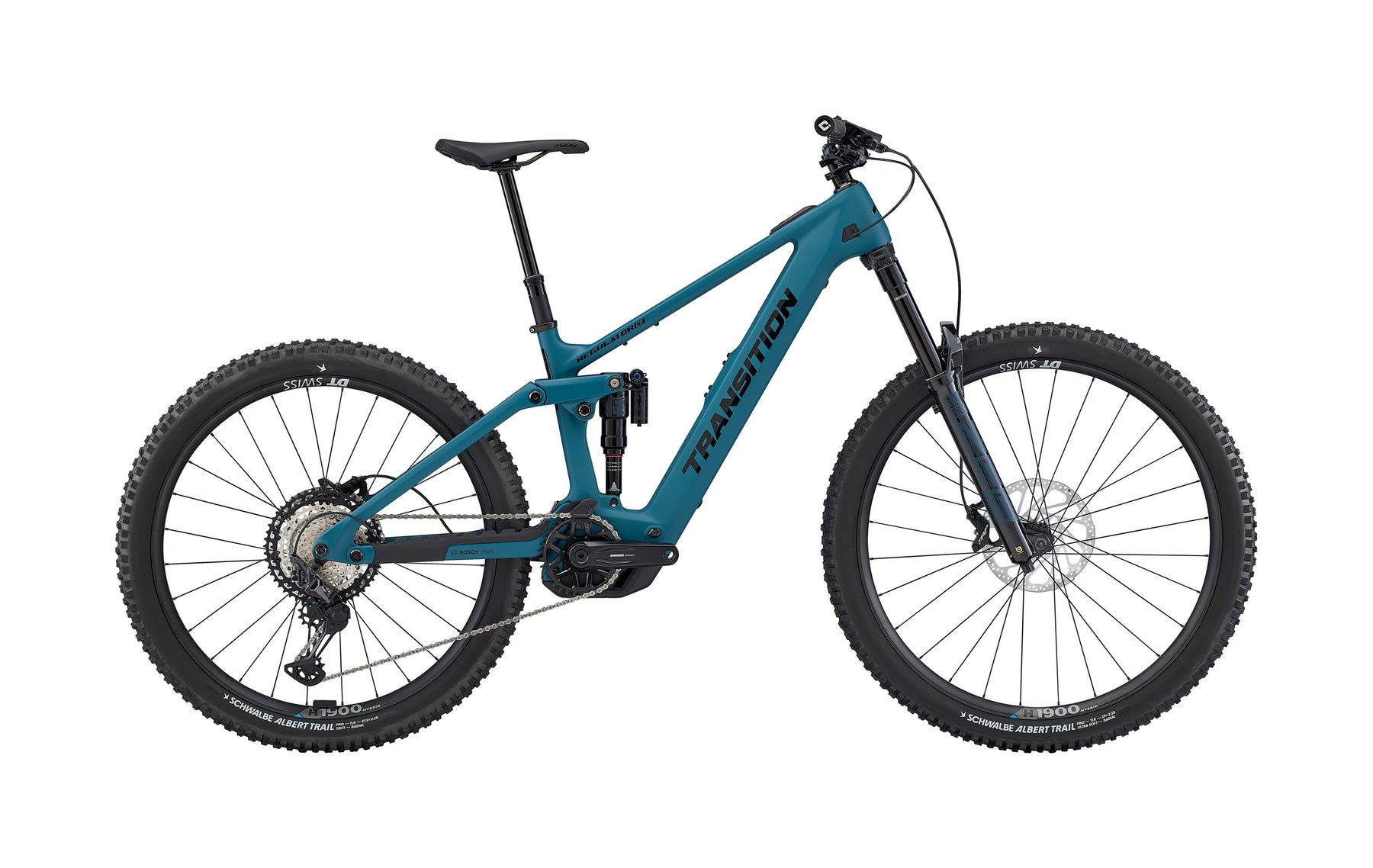

Regulator CX Builds
| Colour Options | Salish Sea Blue, Glacier White |
| Frame | Regulator CX Carbon 150mm |
| Wheel Size | Mixed |
| Drive Unit | Bosch Performance Line CX |
| Battery | Bosch Powertube 600 Wh |
| Display | Bosch System Controller |
| Assist Switch | Bosch Wireless Mini-Remote |
| Rear Shock | RockShox SuperDeluxe Ultimate (205 x 60 mm) |
| Fork | Rockshox ZEB Ultimate (160 mm) |
| Headset | FSA No.57E |
| Stem | ANVL Swage (40 mm) |
| Handlebar | OneUp Carbon SM (800 x 20) MD/LG/XL (800 x 35) |
| Grips | ODI Elite Flow Lock-On |
| Saddle | SDG Bel Air V3 LUX |
| Seatpost | OneUp Dropper Post SM (150 mm) MD (190 mm) LG (210 mm) XL (240mm) |
| Brakes | TRP DH-R EVO |
| Rotors | TRP R1 2.3 (203mm) |
| Shifter | Shimano XT M8100 |
| Derailleur | Shimano XT M8100 SGS 12 sp |
| Cassette | Shimano XT M8100 (10-51T) |
| Chain | Shimano XT M8100 |
| Crank | SRAM S1000 (150 mm) |
| Chainring | E*Thirteen helix Race Direct Mount (34T) |
| Chainguide | Transition Integrated Top Guide |
| Rims | DT Swiss H 1900 Spline 30 |
| Spokes | DT Swiss Hybrid 1 |
| Hubs | DT Swiss Hybrid 370 |
| Front Tyre | New Schwalbe Tyre (Ultra Soft 2.5) |
| Rear Tyre | New Schwable Tyre (Soft 2.5) |
| Included | Bosch Charger, Tubeless Valves & Sealant |
Geometry
| SM High / Low |
MD High / Low |
LG High / Low |
XL High / Low |
||
|---|---|---|---|---|---|
| A | Reach | 425 / 420 mm | 455 / 450 mm | 480 / 475 mm | 510 / 505 mm |
| B | Stack | 623 / 628 mm | 632 / 637 mm | 641 / 646 mm | 651 / 656 mmm |
| C | Effective TT Length | 551 / 554 mm | 583 / 587 mm | 610 / 615 mm | 643 / 648 mm |
| D | Seat Tube Length | 375 mm | 400 mm | 440 mm | 470 mm |
| E | Effective ST Angle | 78.8° / 78.3° | 78.5° / 78.0° | 78.2° / 77.7° | 77.9° / 77.4° |
| Reference Seat Height | 600 mm | 660 mm | 720 mm | 780 mm | |
| Actual ST Angle | 75.0° / 74.5° | 75.0° / 74.5° | 75.0 / 74.5 mm | 75.0° / 74.5° | |
| ST Offset AT BB Height | 41 mm | 41 mm | 41 mm | 41 mm | |
| F | Head Tube length | 105 mm | 115 mm | 125 mm | 135 mm |
| G | Head Tube Angle | 64.5° / 64.0° | 64.5 / 64.0 mm | 62.5° / 64.0° | 64.5° / 64.0° |
| H | Chainstay Length | 442 / 444 mm | 442 / 444 mm | 448 / 450 mm | 448 / 450 mm |
| I | Wheelbase | 1201 / 1203 mm | 1235 / 1237 mm | 1271 / 1273 mm | 1305 / 1307 mm |
| J | Bottom Bracket Drop (Front) | 25 / 20 mm | 25 / 20 mm | 25 / 20 mm | 25 / 20 mm |
| Bottom Bracket Drop (Rear) | 5 / 10 mm | 5 / 10 mm | 5 / 10 mm | 5 / 10 mm | |
| K | Estimated BB Height | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm |
"
